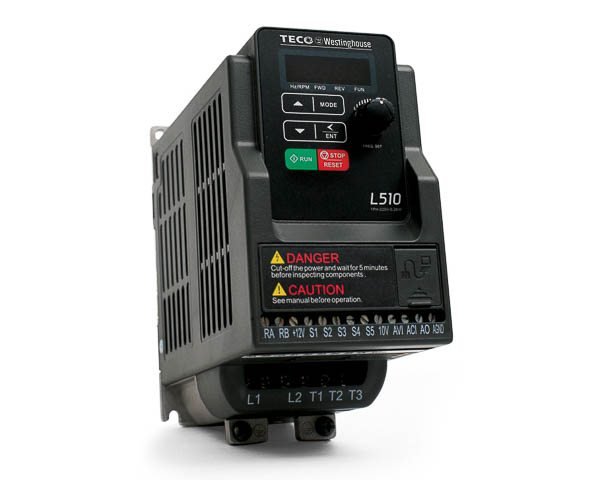

Teco Westinghouse Variable Frequency Drive (VFD)

• V/F mode or Sensorless Vector Operation
• Parameters grouped by function
• PID Process Control Loop
  ? Sleep Mode
  ? 0-10VDC or 4-20mA Feedback
  ? Loss of feedback or tracking detection
• Built-in Modbus or BACnet Protocols
  (RJ45 Interface)
• 5 Digit operator?s keypad
  ? Scalable Display
  ? Programming parameters
  ? Diagnostics monitoring
• Built-in Speed Pot
• Digital and Analog Inputs ? Outputs have
  extremely fast (~4 msec) update time
• Dimensions: 5.55 X 2.83 X 5.48 Inches
• Power Range:
  115V, 1? (0.25 to 1 HP)
  230V, 1? (0.25 to 3 HP)
  230V, 3? (0.5 to 3 HP)
  460V, 3? (1 to 3 HP)
• L510-Brochure:
• https://www.tecowestinghouse.ca/wp-content/uploads/L510_brochure.pdf
• OUT of the Box Startup ? Overview
• https://www.tecowestinghouse.ca/wp-content/uploads/L510_quickstart.pdf
