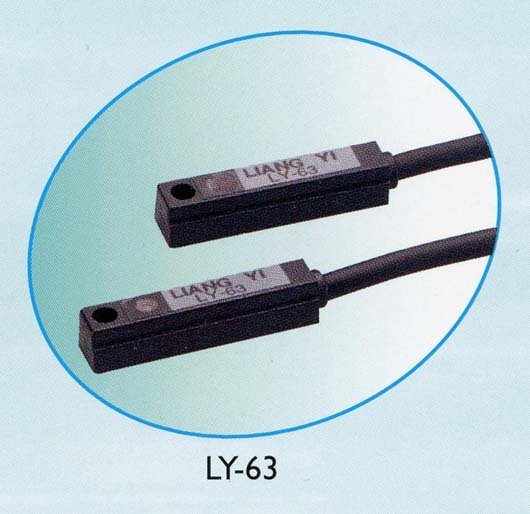

LY-63 Reed Switch
USD $24.73
LY-63 LY63 Reed Switch for a Twinrod Cylinder, and or a rodless Cylinder.
Description
LY-63 LY63 Reed Switch for a Twinrod Cylinder, and / or a rodless Cylinder.
LY-63 Specification
| Operating Voltage | DC:5V~30V, AC:5~110V |
| Switching Current | 40mA max |
| Response Time | < 1 ms |
| Operating Temp | -10 C~60 C |
| Protect Degree | IP66 |
| Operating Distance | 7~12 mm+-10% max |
| ON-OFF Distance | 2mm+-10% max |
| Color of LED | Red LED |
| Switching Logic | Normally Open |
| Cable | Ø3.3 2C Cable |
