MJ3-511112 Simulated Hinge Lever Moujen Micro Switch
USD $17.23
Buy Moujen MJ3-511112 5A 250VAC 4A 24VDC, 1.1A 125VDC, IP40 cURus CE approved, Positive Opening. Free Shipping on orders over $100 US. Fast Delivery One Year Warranty. 1-877-225-5824
Description

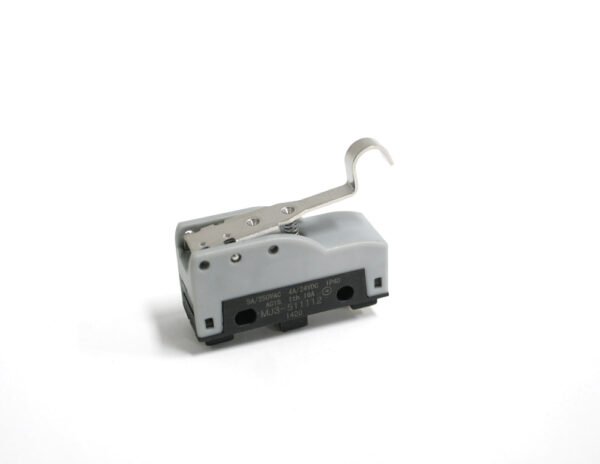

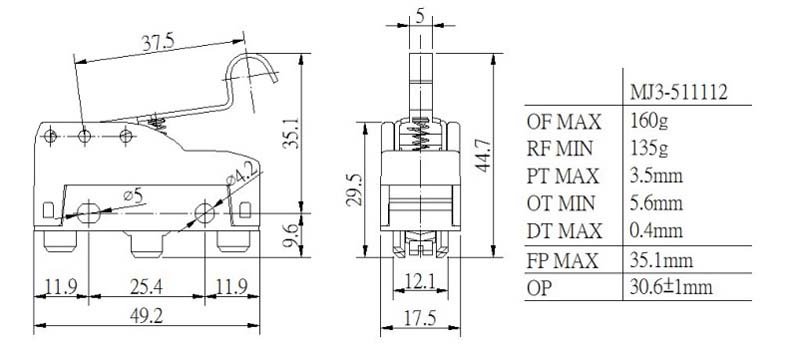

MOUJEN MJ3-511112 Simulated Hinge Lever Micro Switch Positive Opening
- OF: Operating Force Max 160 g
- RF: Release Force Min 135 g
- PT: Pretravel Max 3.5 mm
- OT: Over Travel Min 5.6 mm
- DT: Differential Travel Max 0.4 mm
- FP Max : 35.1 mm
- OP: Operating Position 30.6 +-1 mm
Limit Switch Crossreference
This item is equivalent to or can substitute these items from other manufacturers
| Honeywell | |
| Omron | |
| SAIA Burgess | |
| SAIA Burgess | |
| Honeywell | |
| Honeywell | |
| Honeywell | |
| Moujen | ?MJ3-511112 |
| Siemens | |
| Eaton | |
| Cutler Hammer | |
| Panasonic | |
| Aromat / Nais | |
| Yamatake | ?N/A |
| ?Allen Bradley | ?N/A |
| ?Moujen | ?MJ2-1741 |
Not sure about the application? Call us now!
Trillium controls provides Micro switches used in a variety of applications and environments, manufactured with a variety of operator types, including lever and roller plunger. Our Series cover almost your needs.
