MJ3-511119 Hinge Short Roller Lever 26.2mm Moujen Micro Switch
Roll over image to zoom in
USD $20.17
Buy Moujen MJ3-511119 5A 250VAC 4A 24VDC, 1.1A 125VDC, IP40 cURus CE approved, Positive Opening. Free Shipping on orders over $100 US. Fast Delivery One Year Warranty. 1-877-225-5824

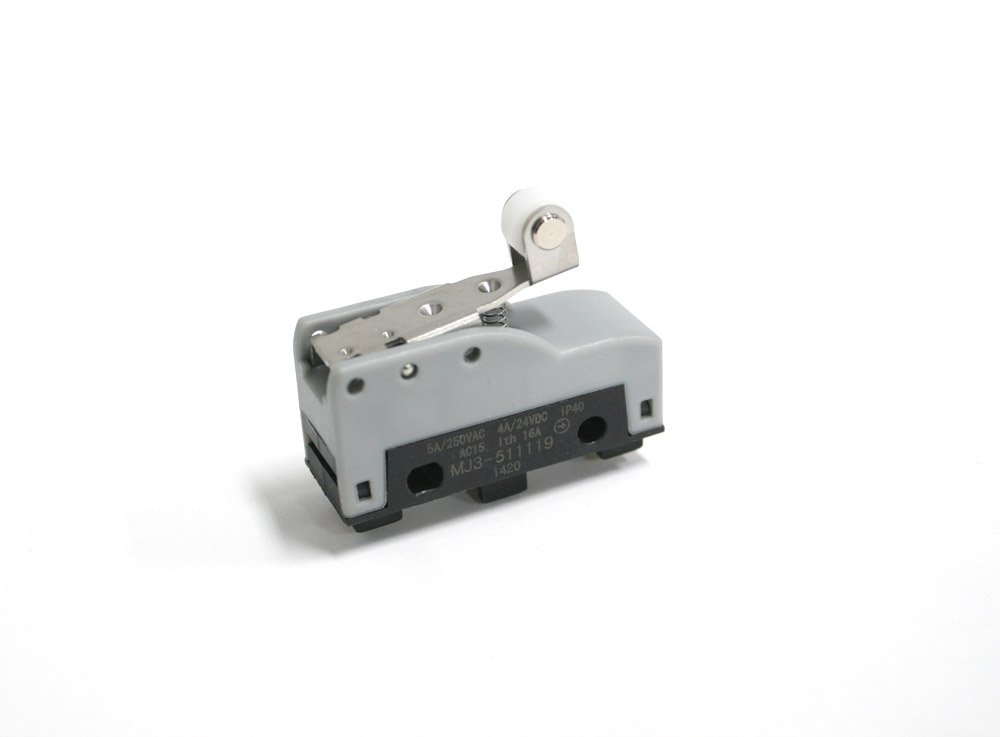

MOUJEN MJ3-511119 Hinge Short Roller Lever 26.2 mm Micro Switch Positive Opening

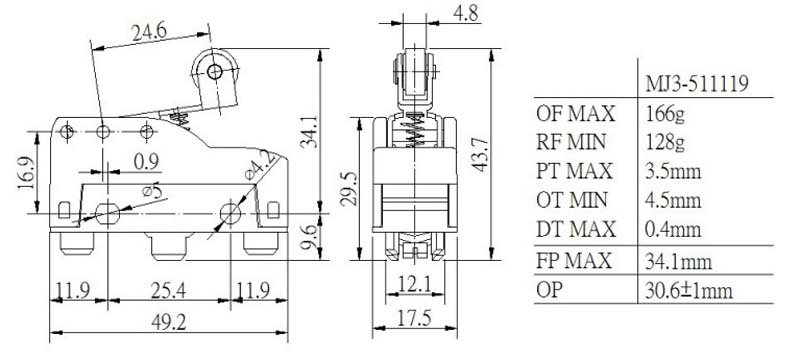

- OF: Operating Force Max 166 g
- RF: Release Force Min 128 g
- PT: Pretravel Max 3.5 mm
- OT: Over Travel Min 4.5 mm
- DT: Differential Travel Max 0.4 mm
- FP Max : 34.1 mm
- OP: Operating Position 30.6 +- 1 mm
Limit Switch Crossreference
This item is equivalent to or can substitute these items from other manufacturers
| oneywell | ?BZ-2RW822-A2 |
| Omron | ?Z-15GW22-B |
| SAIA Burgess | ?PN4-GK26 |
| SAIA Burgess | ?CT2KR-A2, CR1KR |
| Honeywell | ?BZ-2RW82212-A2 |
| Honeywell | ?BZ-2RW82212-A2 |
| Honeywell | ?BZ-2RW82212-A2 |
| Moujen | ?MJ3-511119 |
| Siemens | ?N/A |
| Eaton | ?E47BMS30 |
| Cutler Hammer | ?E47BMS30 |
| Panasonic | ?AM1704F |
| Aromat / Nais | ?AM1704F |
| Yamatake | ?N/A |
| ?Allen Bradley | ?N/A |
| ?Moujen | ?MJ2-1704 |
Not sure about the application? Call us now!
Trillium controls provides Micro switches used in a variety of applications and environments, manufactured with a variety of operator types, including lever and roller plunger. Our Series cover almost your needs.
