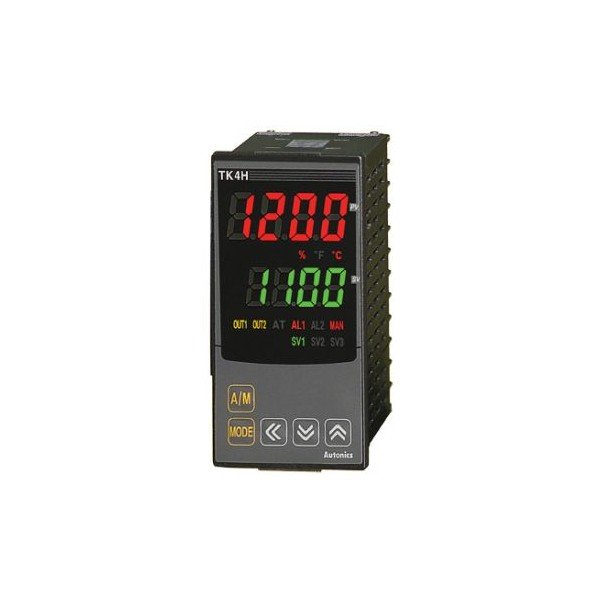

TK4H-14RR, Heat Cool Temperature Controller Relay Output
USD $300.93
TK4H-14RR Heat Cool Temperature Controller Relay Output …
Description
TK4H-14RR Heat Cool Temperature Controller Relay Output
-
- 1/8 DIN,?High Accuracy, PID Control, 1 Alarm Output,100-240 VAC
Specifications
Allowable Voltage Range |
 |
90 ~ 110% of rated voltage |
|
||
Power Consumption |
|
Max. 8 VA |
|
||
Display Method |
|
7 Segment (Red), Other display part (Green, Yellow, Red) LED |
|
||
Character Size |
|
PV (W8.5mmx17mm) SV (W6mmx12mm) |
|
||
Input Type |
|
RTD: JPT 100?, DPT 50?, CU 100?, Nikel 120? (6types), Thermocouples: K,J, E, T, L, N, U, R, S, B, C, G, PLH (13 types), Analog: Voltage: 0~100mV, 0~5V, 1~5V, 0~10V(4types) / Current: 0~20mA, 4~20mA(2 types) |
|
||
Power Supply |
|
100~240 VAC |
|
||
Alarm Output |
|
AL1, AL2 Relay: 250VAC 3A 1a |
|
||
Control Output 1 |
|
Relay?Output |
|
||
Control Output 2 |
|
Relay?Output |
|
||
Option Output |
|
1 Alarm |
