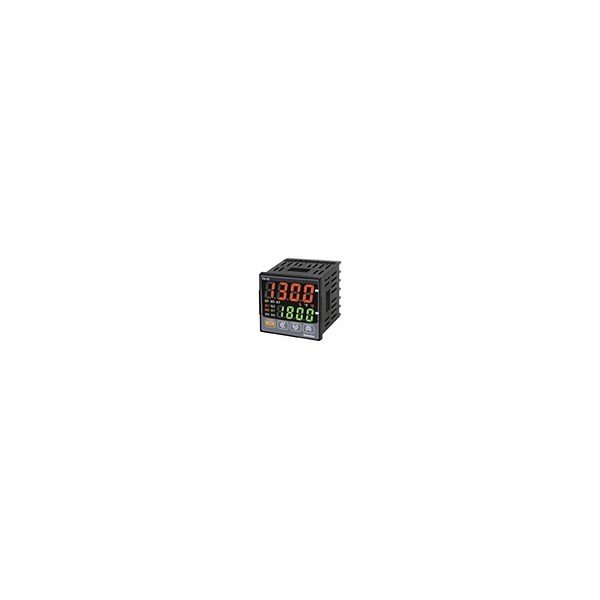

TK4S-14CC, Heat Cool Temperature controller Current or Voltage Output

TK4S-14CC Heat Cool Temperature Controller
Current or Voltage Output

1/16 DIN, High Accuracy, PID Control, 1 Alarm Output, 100-240 VAC

Specifications

Allowable Voltage Range
90 ~ 110% of rated voltage

Power Consumption
Max. 8 VA

Display Method
7 Segment (Red), Other display part (Green, Yellow, Red) LED

Character Size
PV (W7mmx14mm)
SV (W5mmx10mm)

Input Type
RTD: JPT 100?, DPT 50?, CU 100?, Nikel 120? (6types), Thermocouples: K,J, E, T, L, N, U, R, S, B, C, G, PLH (13 types), Analog: Voltage: 0~100mV, 0~5V, 1~5V, 0~10V(4types) / Current: 0~20mA, 4~20mA(2 types)

Power Supply
100~240 VAC

Alarm Output
AL1, AL2 Relay: 250VAC 3A 1a

Control Output 1
Current or SSR Drive

Control Output 2
Current or SSR Drive

Option Output
1 Alarm
