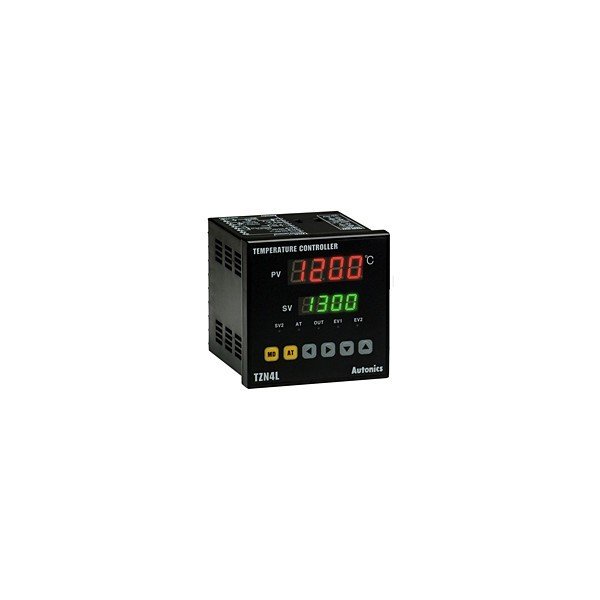

TZN4L-14R Temperature Controller Relay Output

Specifications

Type??????????????????????????????????PID Temperature Controller

Digits?????????????????????????????? ?4

Dimensions????????????????????????DIN W96 x H96mm (Terminal Type)

Power Supply?????????????????????100-240 VAC 50/60 Hz

Allowable Voltage Range??????90 ~ 110% of power supply

Power Consumption????????????6?VA

Display Method???????????????????7 Segment LED Display

[Process value (PV)Red,Setting value (SV) : Green]

Character Size??????????????????PV: W8 x H13 mm

SV: W5 x H 9?mm

E (CR)

J (IC)

K (CA)

Thermocouple Input? ?????????N (NN)

R (PR)

S (PR)

T (CC)

W (TT)

RTD Input??????????????????????????Pt 100?

JIS Pt 100?

Analog Input??????????????????????0 – 10 VDC

1 – 5 VDC

4-20 mADC

Output??????????????????????????????250 VAC 3 A 1c Relay

Transmission Output???????? PV?transmission:4-20 mA DC Load Max 600 ohm

Communication Output??????PV transmission

SV set

Control Type???????????????????? ?ON/OFF, P, PI, PD, PIDF, PIDS control

Display Accuracy????????????????3 ?C (Higher one)

F?S ?0.3%

Sampling Time????????????????????0.5 sec

LBA Selling Time?????????????????1 ~ 999 sec

RAMP Setting Time??????????????Ramp Down at 1~99min.

Ramp UP

Control Output???????????????????Relay Out

Event Output?????????????????????Event 1 Output

PID Controller????????????????????Nema 4 Digital

Alarm Output?????????????????????1
